Ford English 18 Spline Uprated Plated Type LSD (PLF120/18*)

Suitable for (with uprated 18 spline shafts):

Ford English Axle (18 spline only)
Escort MK1
Escort MK 2
Cortina MK 1
Cortina MK 2
Anglia 105E
Prefect 107E
Kit Cars

Not suitable for:

Atlas axle
Capri or Cortina MK 3/4/5
ONLY SUITABLE FOR UPRATED 18 SPILNE SHAFTS, WILL NOT WORK WITH STANDARD 22 SPLINE SHAFTS

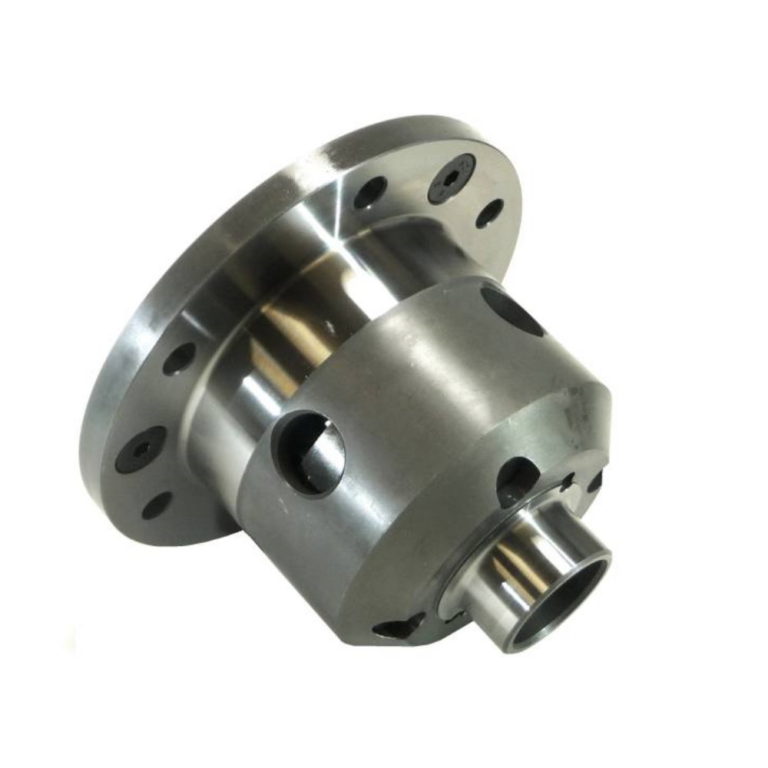

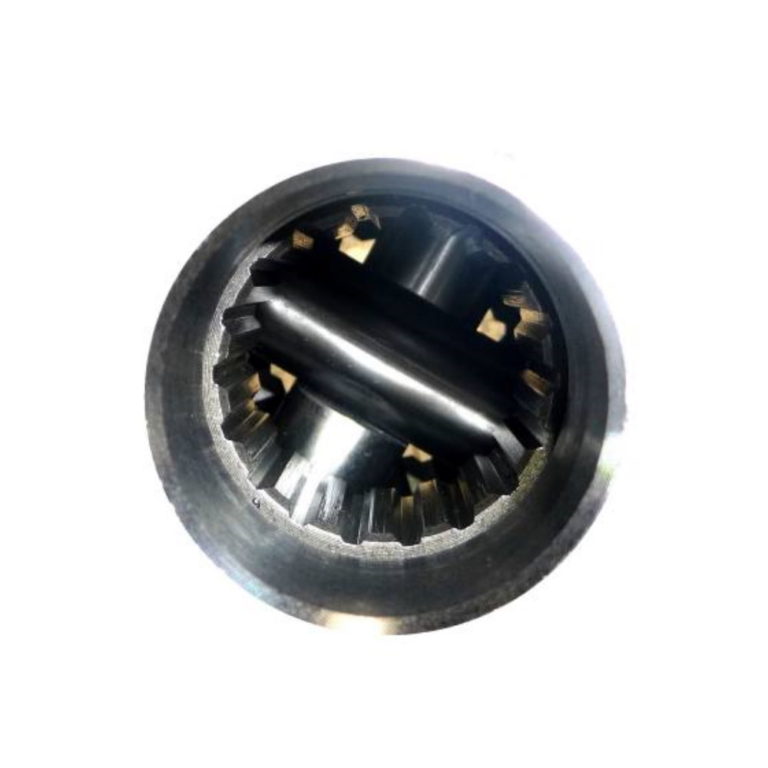

The Blackline plate style LSD is a true Motorsport differential, set to 30/90 hi-torque ramp angles. It offers maximum traction even when either wheel is unloaded, ideal for race and rally applications. Supplied with 18 tooth Spline to mate to Retroford Heavy Duty 18 Spline Half Shaft Kits (LINK)

Includes:

Assembled differential unit only

Does not include:

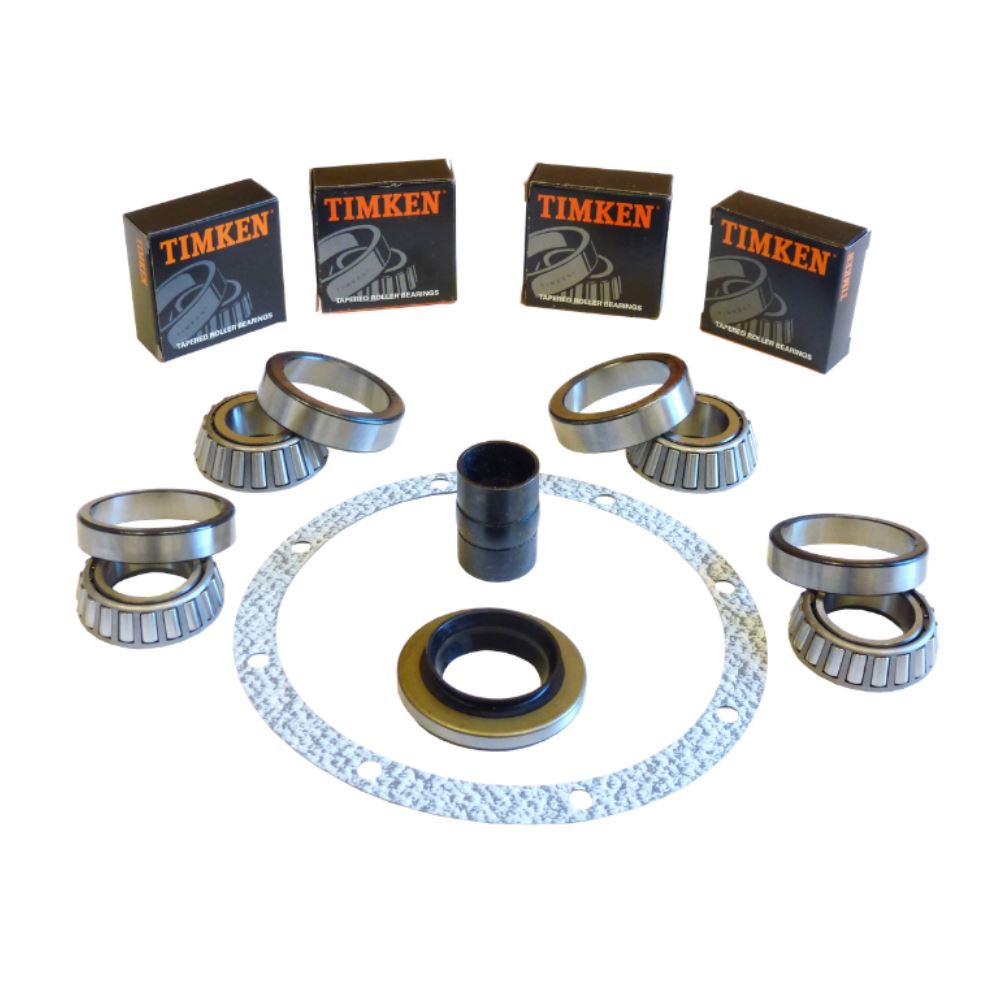

Side Bearings – available here
Full Differential Rebuild Kit – available here
PLEASE NOTE DUE TO THE LARGER DIAMETER OF THE SHAFT, 18 TOOTH LSD’S MUST BE USED WITH OVERSIZED 38mm ID SIDE BEARINGS AS OPPOSED TO STANDARD 35mm ID OEM SIDE BEARINGS (OVERSIZE 38mm ID SIDE BEARINGS AVAILABLE HERE)

The benefits of this LSD include:

With Retroford Heavy Duty 18 Spline Half Shafts these LSD’s are rated to take 300BHP +
Applies equal rotational speed to both wheels
Controlled power on launches and drifting slides
Easier car control
Optimum gear tooth design and oil distribution
Gears and Body Manufactured from 8620 material

Please note – The plated LSD is supplied without a warranty or guarantee as this type of LSD is mainly suited for track and competition use. Due to the variability in levels of grip experienced by road cars i.e. one wheel may be on a grass verge or loose/gravel surface and the other on Tarmac, this can cause very sudden and extreme changes in wheel speed across the rear wheels. The sudden and extreme difference in grip levels places massive stress and shear loads on the LSD and can cause it to Fail.
