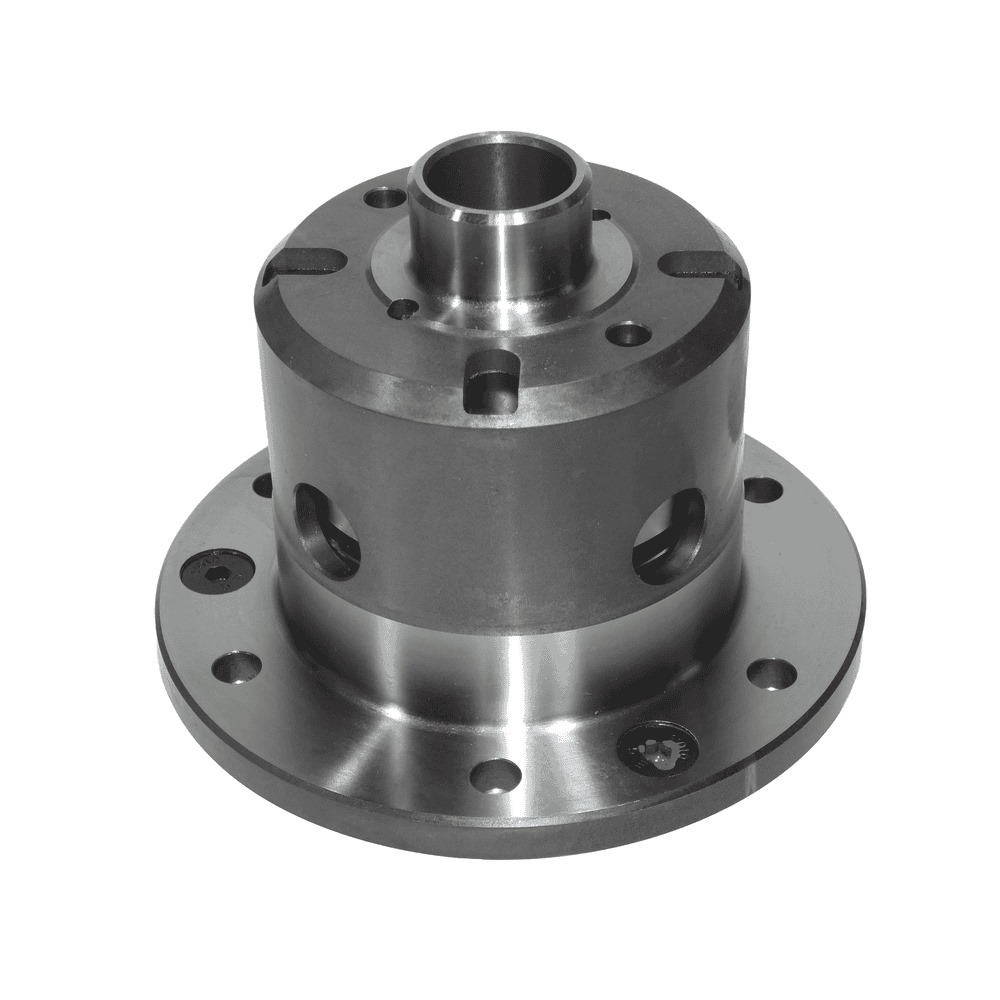

Ultimate Heavy Duty Plated English LSD with Atlas Internals – 22 Spline (PLF130-22)

The former weak point of the old Salisbury style LSDs has been addressed with the innovative Blackline type Atlas design, matching the power capacity of the Atlas LSD up to 300hp. With the completion of the upgraded powertrain, the English Axle offers customizable break away torque, with a default setting of 60ft lbs suitable for rallying. Optional plate sets of 37ft lbs (ideal for oval racing and road use) or 80ft lbs (for racing) are available at additional cost.

Specifications:

• Fitment: English Axle
• Splines: 22
• Atlas design allows up to 300hp
• Default brake torque setting: 60ft lbs
• Optional plate sets: 37ft lbs and 80ft lbs (The optional plate set will not come fitted, the LSD will be supplied with the default 60ft lbs plates and the optional plates will need to be fitted).

Suitable for vehicles with 22 spline shafts, including Ford English Axle, Escort MK1, Escort MK2, Cortina MK1, Cortina MK2, Anglia 105E, Prefect 107E, and Kit Cars. Not compatible with Atlas axle, Capri, or Cortina MK 3/4/5. Please note that it is only compatible with standard 22 spline shafts.

Includes:

• Assembled differential unit only

Does not include:

• Side Bearings (available separately here)
• Full Differential Rebuild Kit (available separately here)
